Chapter 2 : Data MCP Servers

Build Data MCP Servers

• Build MCP Servers with No-code and Customize & Extend to complete your use case.
• Use MCP Servers via AI Editors like Cursor or Cline

Getting Started

Please undertake below tutorial first , if you have not:

• Build Your First App
  • With Focus on Backend Spring-Java

MCP Server - Spring Java

info

• MCP Server - Spring Java is built along with Backend spring-java.
• Project Location in downloaded dir is at e.g.
  • EmGenDir_JohnDoe_WS_51069\WS_51069\mcp\spring-java\emmcp

Run Builds and Explore

tip

MCP Layer Connects to API Layer, REST or GraphQL. So please configure and run destination API Layer first.

• APIs Run Builds and Explore
  • Please execute & run backend/spring-java/emapi project:
  • Compile, Deploy, Run.
  • Refer to Tutorial Section 2-5-A : Backend Spring Java

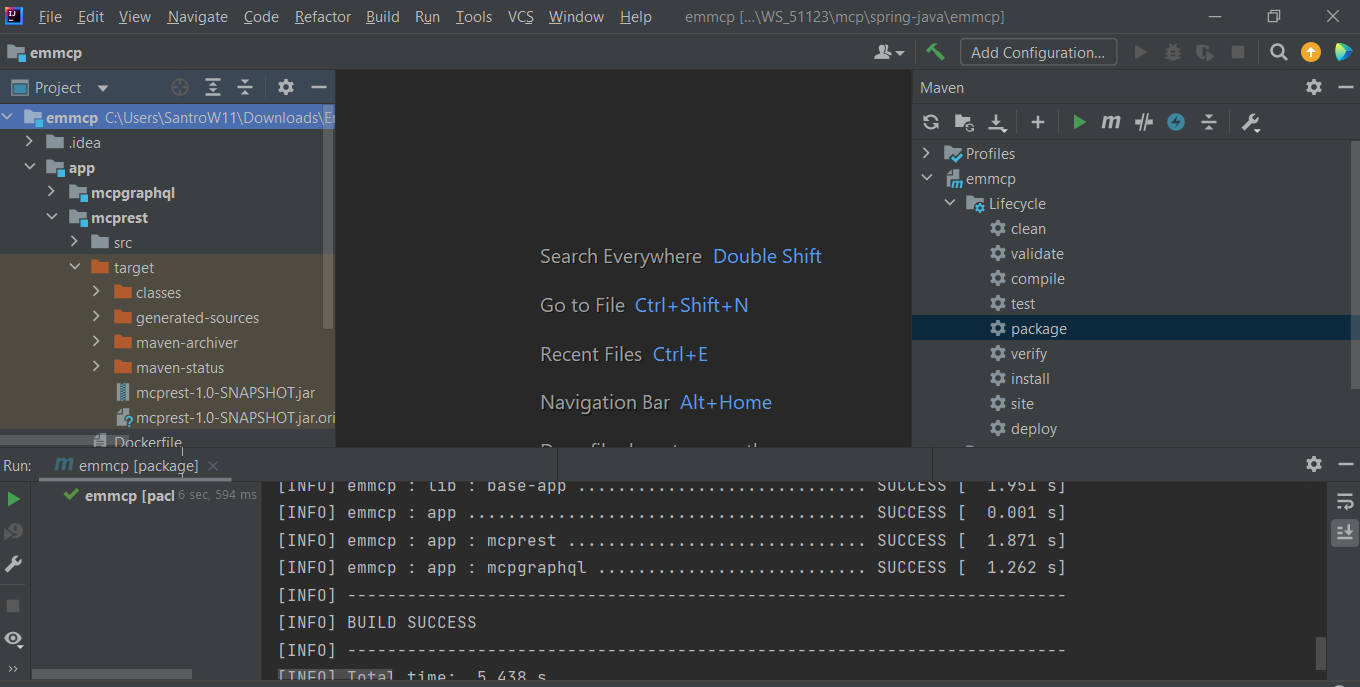

MCP Server Project Build

• Open Maven Project in IDEA IntelliJ
• Maven Goal: package
• Note down jar location, e.g.:
  • C:\Users\JohnDoe\Downloads\EmGenDir_JohnDoe_WS_51123\WS_51123\mcp\spring-java\emmcp\app\mcprest\target\mcprest-1.0-SNAPSHOT.jar

Configure and Run

Configure MCP Server

• Please follow Readme in downloaded dir:
  • mcp\spring-java\README-MCP-Server.md

Available Tools in Data MCP Server

• To see Available Tools in Data MCP Server for REST and GraphQL,
• Please refer to: Data MCP Server Features

MCP Server For REST

Configure MCP Server For REST

• Please follow Readme in downloaded dir:
  • mcp\spring-java\README-mcprest.md

tip

• Refer to some general screenshots on MCP Server configuring in below also:
  • Tutorial 7 : AI Based Development
    • Chapter 2 : EasyManage Builder MCP Server
      • Cursor

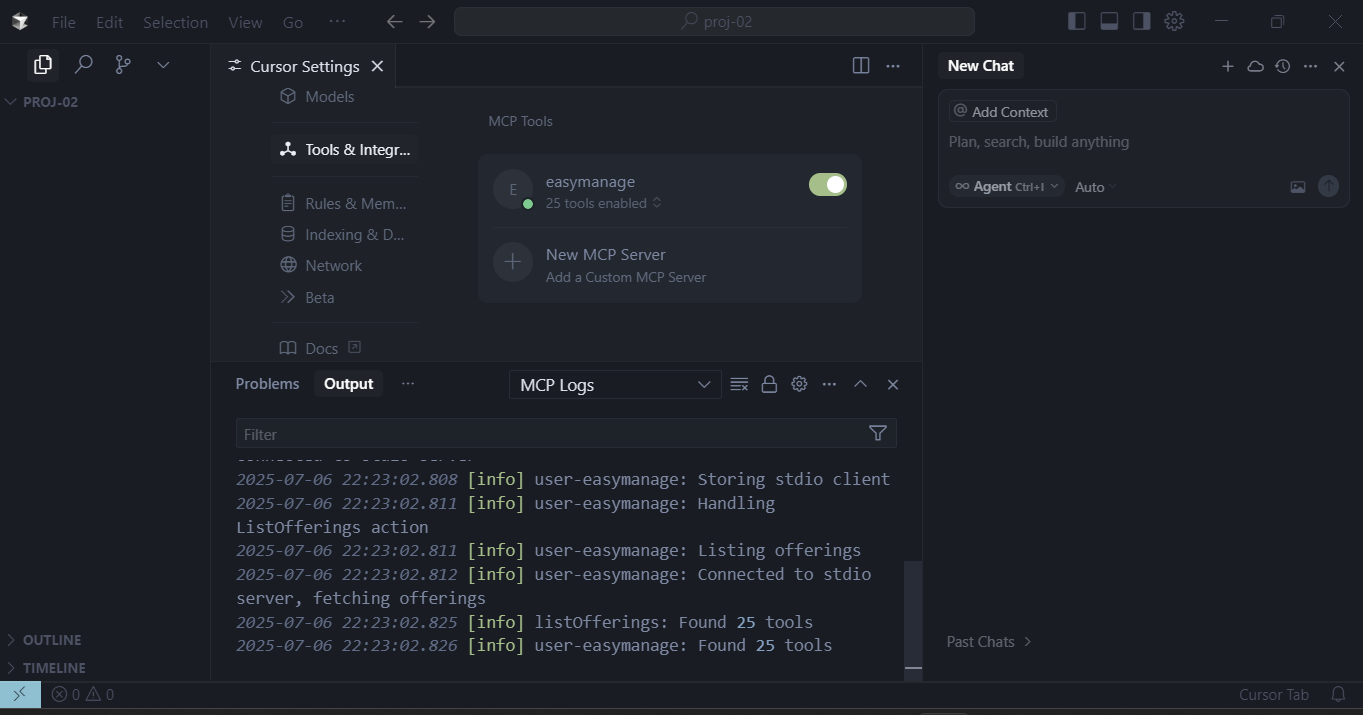

• MCP Added

• MCP Tools

Use MCP Server For REST with Cursor Chat

• Ask Questions and get data insights
• MCP Server For REST Run by following below sections in Readme README-mcprest.md:
  • Available Tools
  • Sample Chats

Example Chat Usage

Get Schema Details

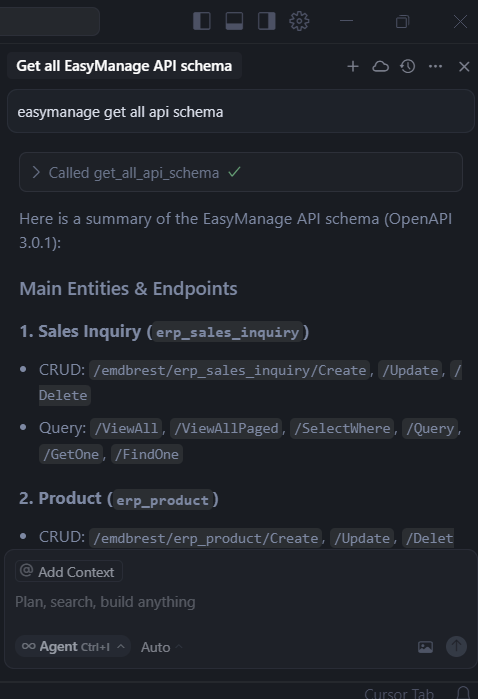

easymanage get all api schema

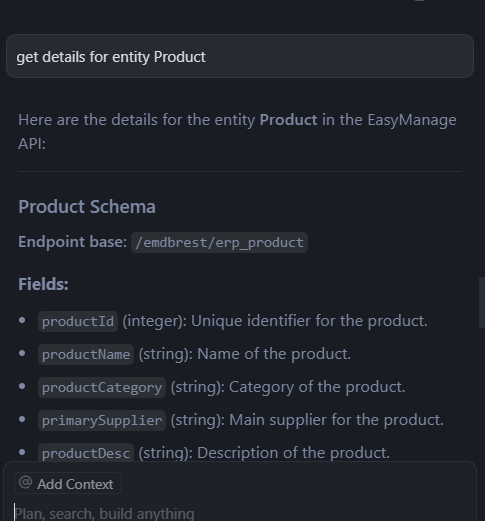

get details for entity Product

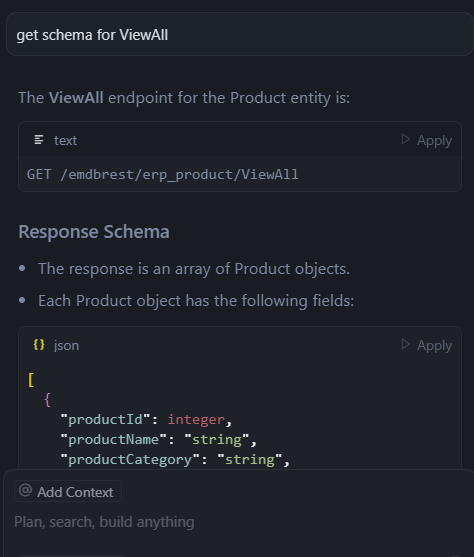

get schema for ViewAll

General

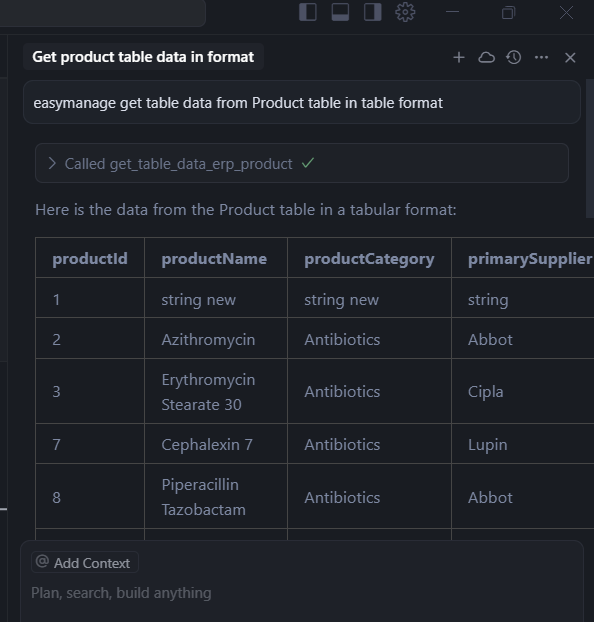

easymanage get table data from Product table in table format

Get Paged Data With Queried & Sorted

• To get queried and sorted data as per parameters as pages
• With Flexible SQL-Like Querying

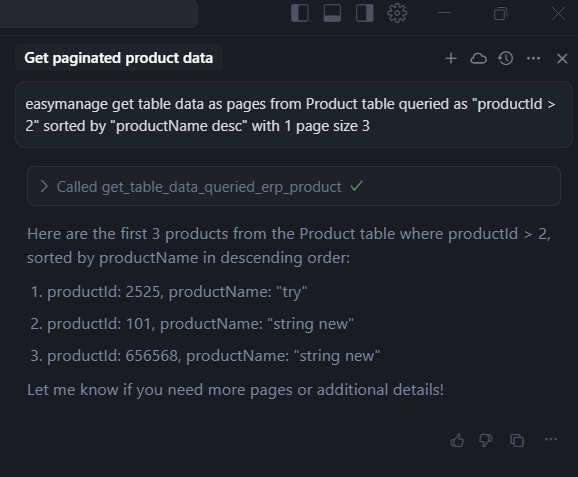

easymanage get table data as pages from Product table queried as "productId > 2" sorted by "productName desc" with 1 page size 3

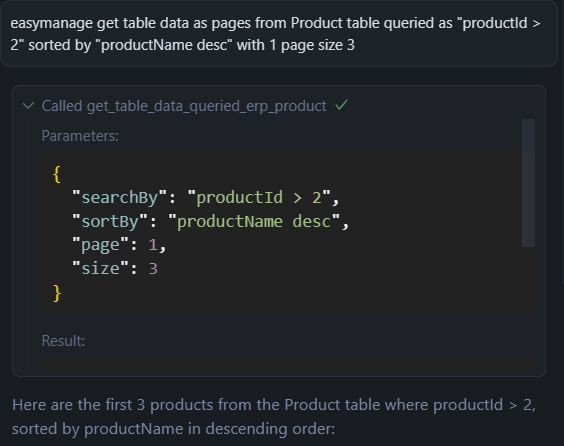

• Please note parameters for above Tool call were constructed properly by AI:

• Try some chat queries

easymanage find the top 3 products with maximum inventory quantity

• Once get response then,

save above response to file top-3-products.txt

• file top-3-products.txt will be created.

info

How to Re-use or Share Input Queries & Prompts

You can re-use the input prompts for yourself or other users. Please open a project in Cursor which is mapped to shared drive which stores the shared input prompts files.

e.g.

• Create file product01.md in project root, with contents:

easymanage get table data as pages from Product table queried as "productId > 2" sorted by "productName desc" with 1 page size 3

Then In chat window click @ Add Context and search and select above file as context.

• Then in chat you can enter input:

use prompt from context file

LLM will reply like:

I'll execute the query from the context file to get table data from the Product table with the specified parameters.

and it will provide the response.

AI Transactions - Create, Update, Delete

Create

easymanage what tool is available to create customer record

want to see an example of how to use this tool

run the tool with values as below
{
  "customerId": "4001",
  "customerName": "Customer 4001",
  "created": "2023-03-19 15:53",
  "updated": "2023-03-19 15:53",
  ...
}

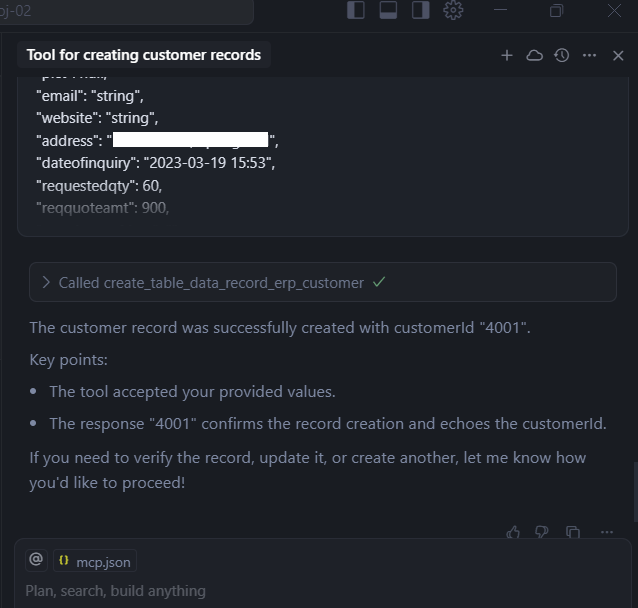

• Sample Screen

Update

easymanage what tool is available to update tenant record

want to see an example of how to use this tool

run the tool with values as below
{
  "tenantId" : 2,
  "TenantTblRec1":
  {
  "tenantId" : 2,
  "tenantName" : "New Name Tenant 2",
  ...
  }
}

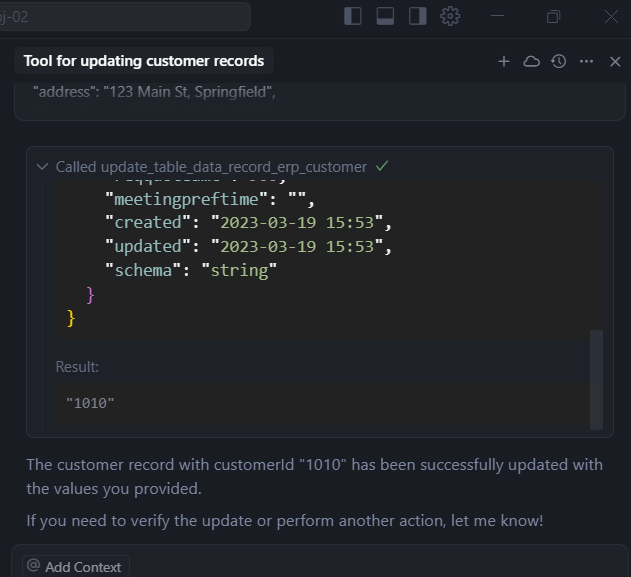

• Sample Screen (customer)

Delete

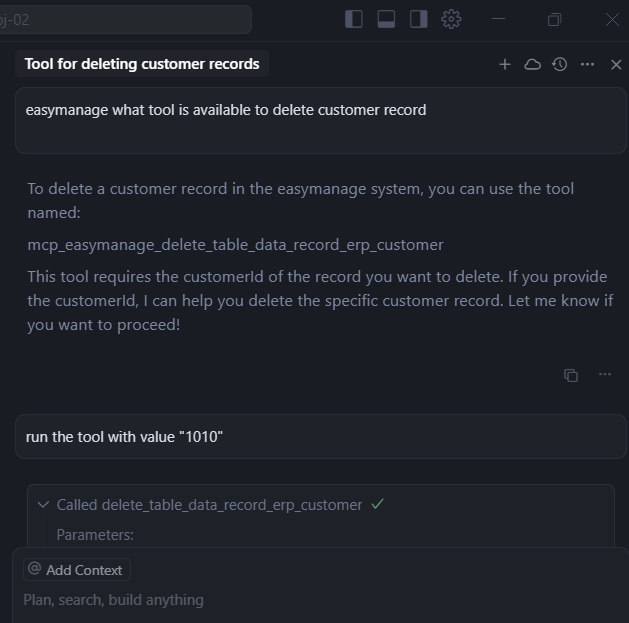

easymanage what tool is available to delete tenant record

want to see an example of how to use this tool

• Sample Screen (customer)

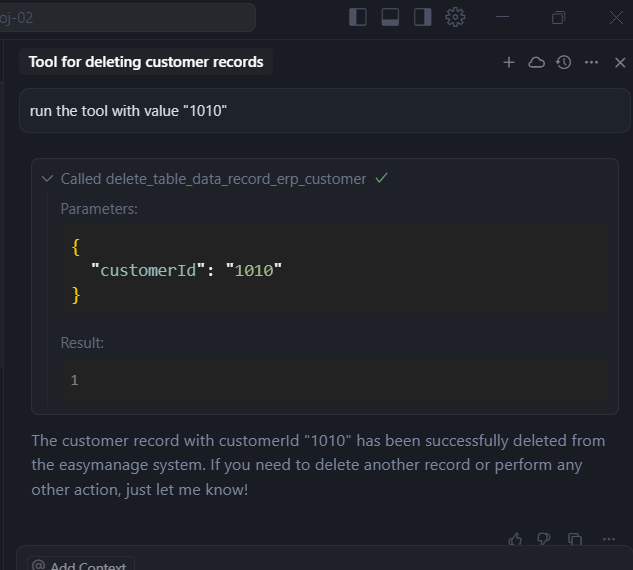

run the tool with value "1010"

• Sample Screen (customer)

MCP Server For GraphQL

Configure MCP Server For GraphQL

• Please follow Readme in downloaded dir:

  • mcp\spring-java\README-mcpgraphql.md

• See sample screens For REST which, are similar

Use MCP Server For GraphQL with Cursor Chat

• Ask Questions and get data insights

• MCP Server For GraphQL Run by following below sections in Readme README-mcpgraphql.md:

  • Available Tools
  • Sample Chats

• See sample screens For REST which, are similar
