Chapter 2 : EasyManage MCP Server

Setup & Use EasyManage MCP Server​

  • Boost AI Based Development with EasyManage MCP Server
  • Server Transport : The server supports transport mode
    • STDIO Mode

Pre-requisites​

How To Configure MCP Server in AI Editor​

Cursor​

Define Global MCP Servers

  • Create or Add to file:
  • C:\Users\<username>\.cursor\mcp.json
  • Open Cursor
  • Goto Settings : Tools & Integrations : MCP Tools

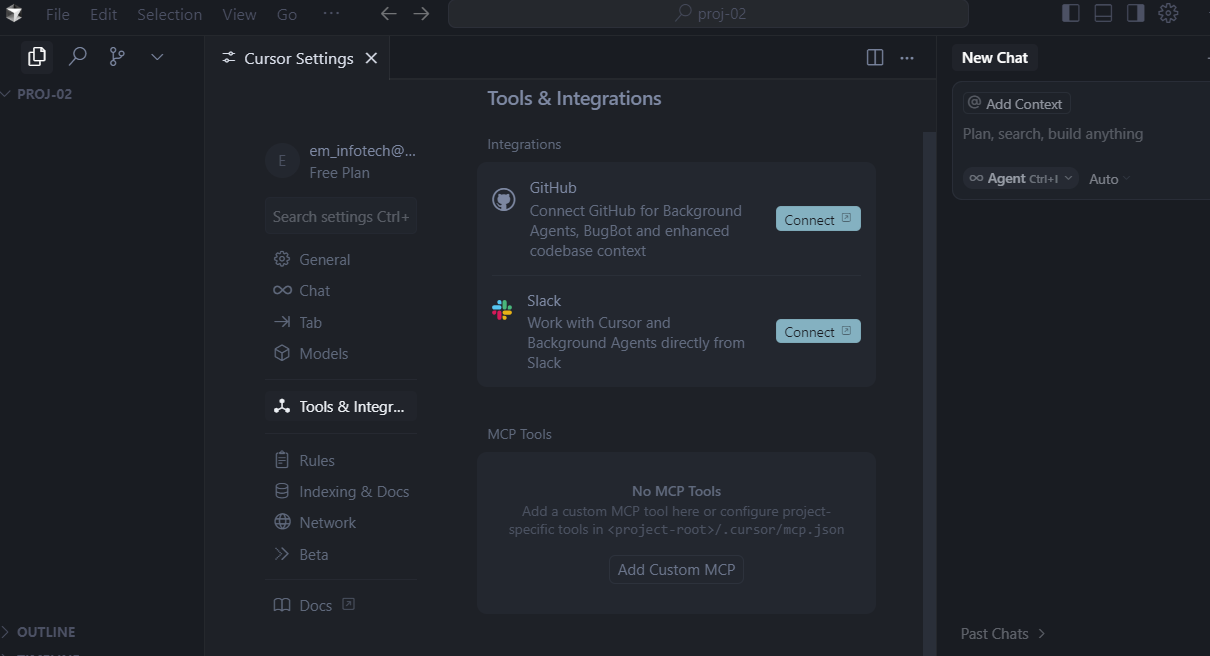

    • Click Add Custom MCP

em-mcp-add

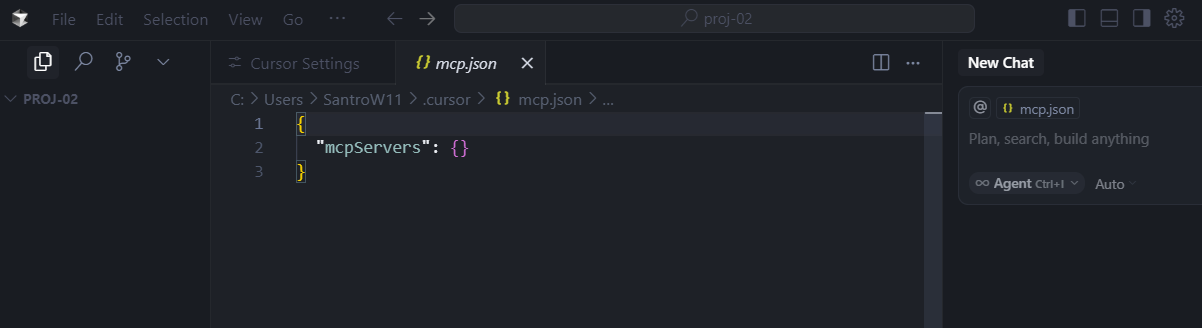

  • mcp.json opened in editor


  • mcp.json fill out step

EasyManage MCP Server sample json configuration file:

{
  "mcpServers": {
    "easymanage": {
      "command": "C:/ProgFiles/Java/jdk-17/bin/java.exe",
      "args":
      ["-jar",
      "path_to_jar/em-mcp-server-1.0.jar",
      "--em.mcp.locdir=path_to_dir"
     ]
    }
  }
}

NOTE:

  • For "command" : Give full path, Use Java 17+
  • --em.mcp.locdir : Specify EasyManage code generated, downloaded & extracted dir.
  • e.g. "--em.mcp.locdir=C:/Downloads/EmGenDir_JohnDoe_WS_50191"
  • You can set a new location lateron using Tool Command setDownloadLocation

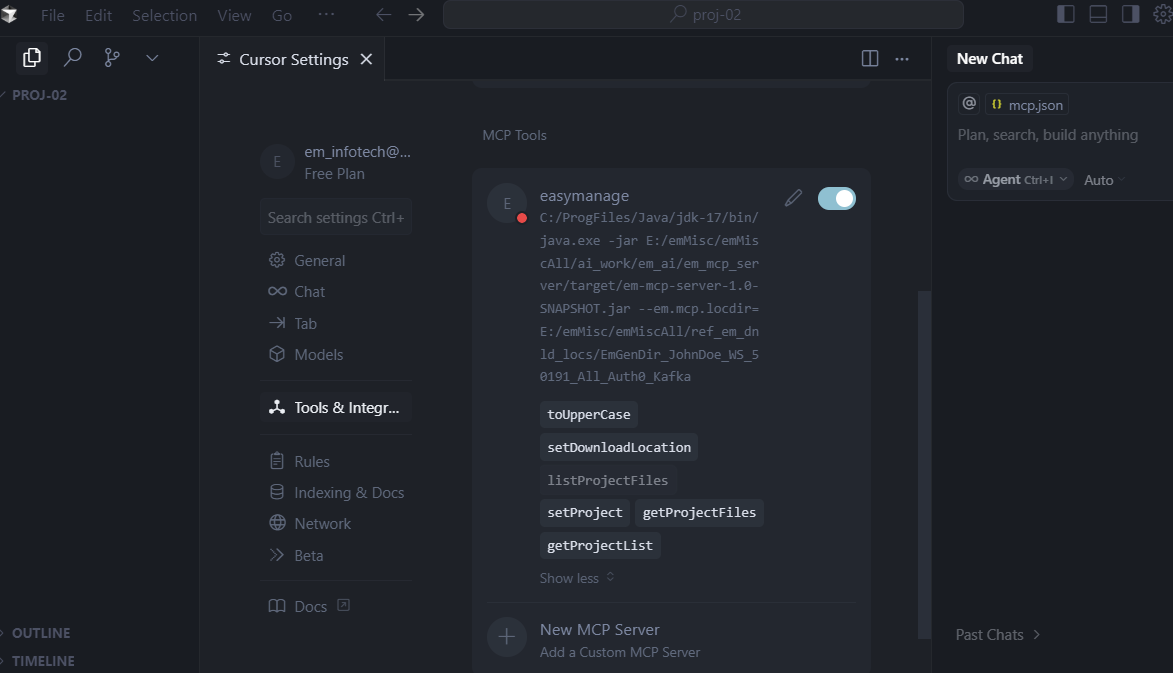

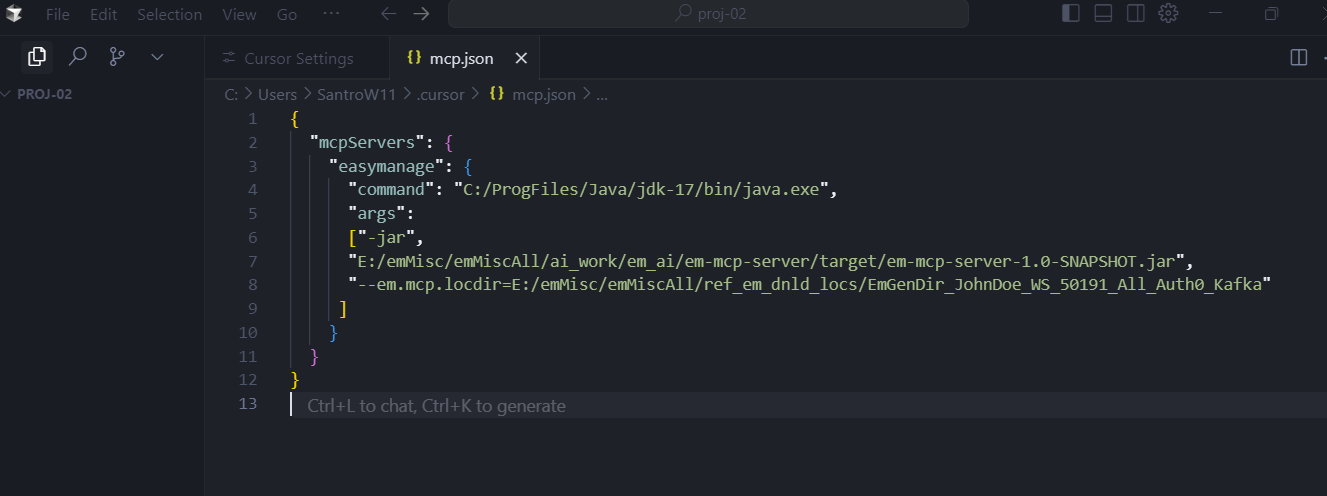

  • mcp.json filled out correctly


  • Save mcp.json and close

    - EasyManage MCP Server will be invoked and started

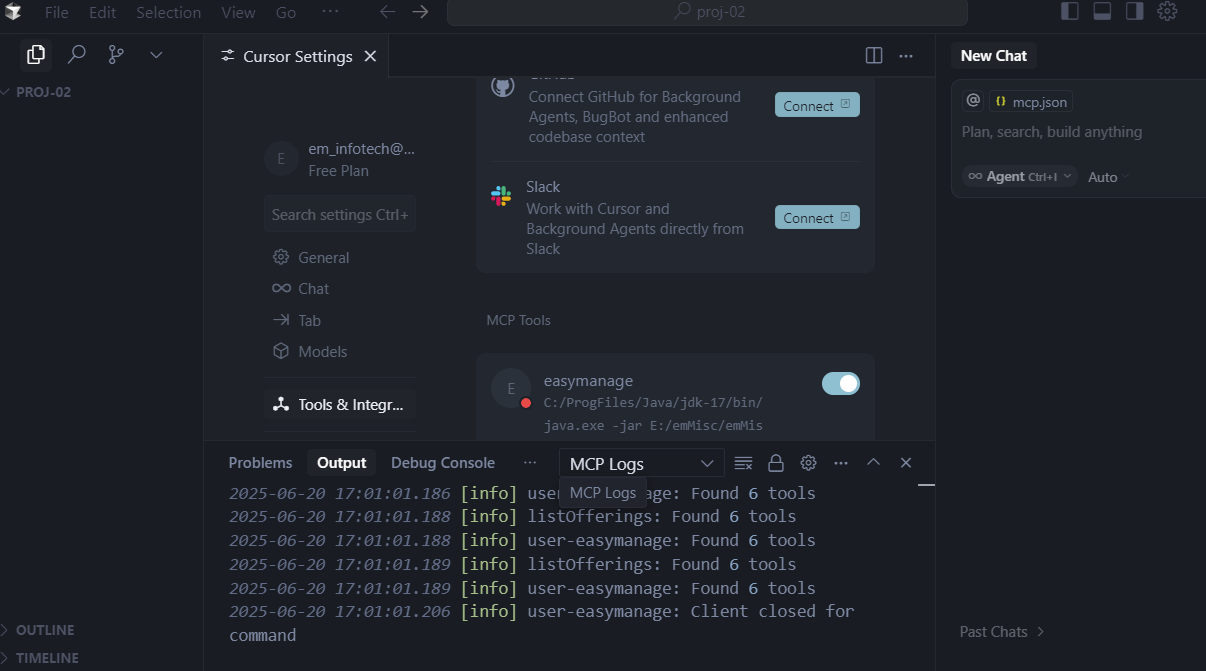

  • See log for EasyManage MCP Server

    • Goto View : Output and Select "MCP Logs" in dropdown


Other AI Editors​

  • You may use Cline, Windsurf or other AI Editor

Available Tools in MCP​

    @Tool(description = "Set location downloaded extracted dir for further interactions")
    public boolean setDownloadLocation(String locDir)

    @Tool(description = "Get project list")
    public List<String[]> getProjectList()

    @Tool(description = "Set project for further interactions")
    public boolean setProject(String projectType)

    @Tool(description = "List project files for the given project")
    public List<String> listProjectFiles(String projectType)

    @Tool(description = "Get all project files for the given project")
    public List<String> getProjectFiles(String projectType)

Use MCP with Cursor Chat​

  • Ask Questions and seek assistance on EasyManage code

Run Sample Chat Questions in Cursor​

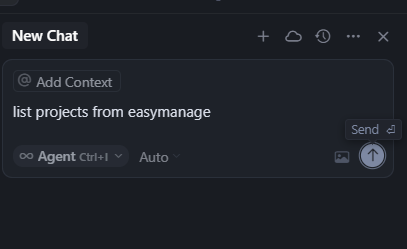

  • New Chat : Give Input
  • list projects from easymanage

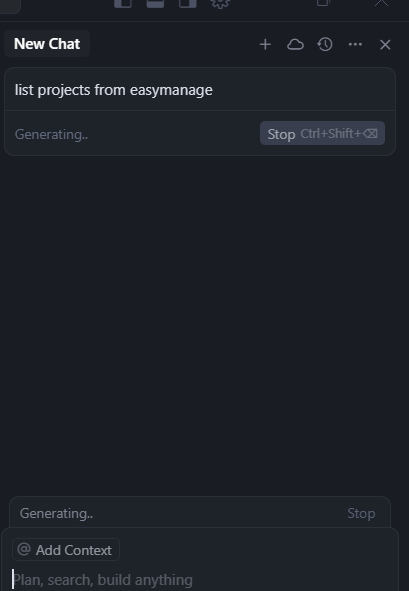

  • Chat Processing : Generating

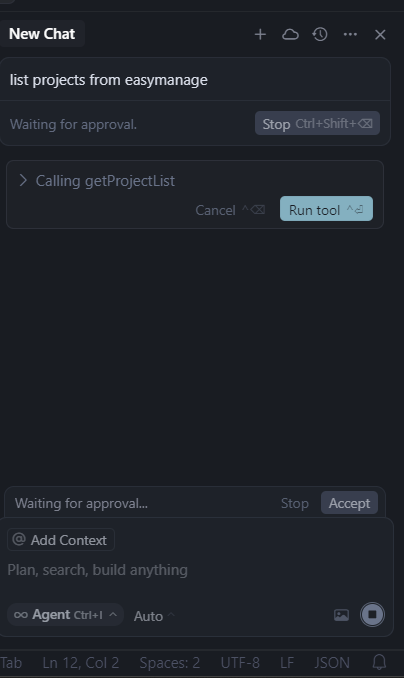

  • Need to Approve : All Prompts : Waiting for approval : Click Accept
    • Please follow whenever asked

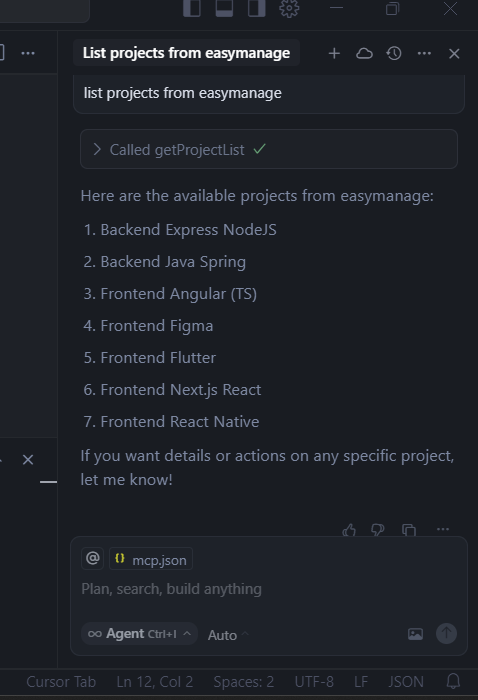

  • After Accept : View Response For Chat Input


Run More Input Questions in Chat​

  • Run yourself below inputs and questions

General, Backend​

list projects from easymanage
or
get project list from easymanage


set project spring-java
or
set project Backend Java Spring

list project files from easymanage

copy all these files to my workspace in subdirectory spring-java
or
copy all these files to my workspace in root

To Set New Download Location​

set location "C:/Downloads/EmGenDir_MYTEMP01_WS_51083"

list projects

Frontend​

set project Frontend Flutter

list project files from easymanage
